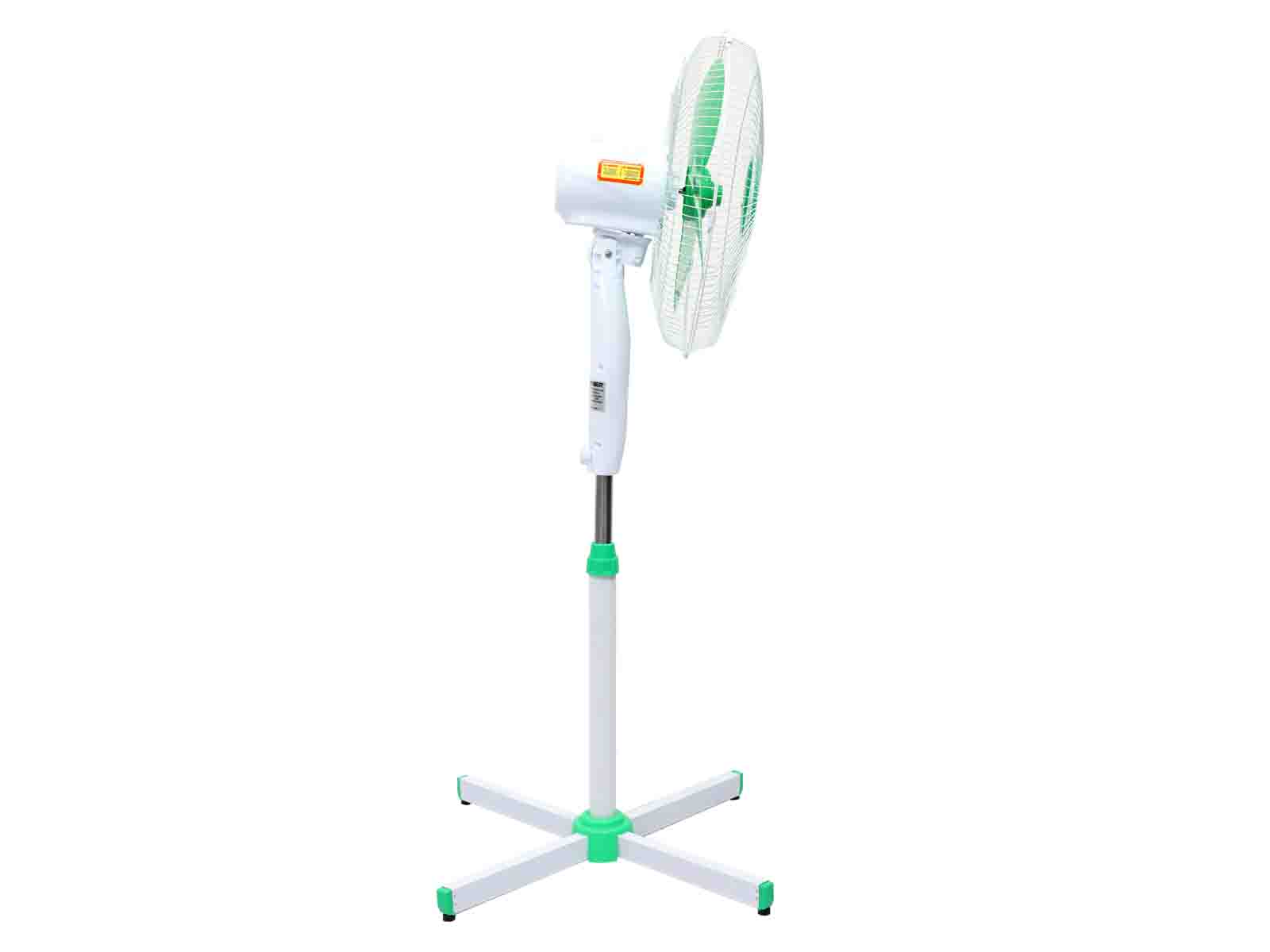

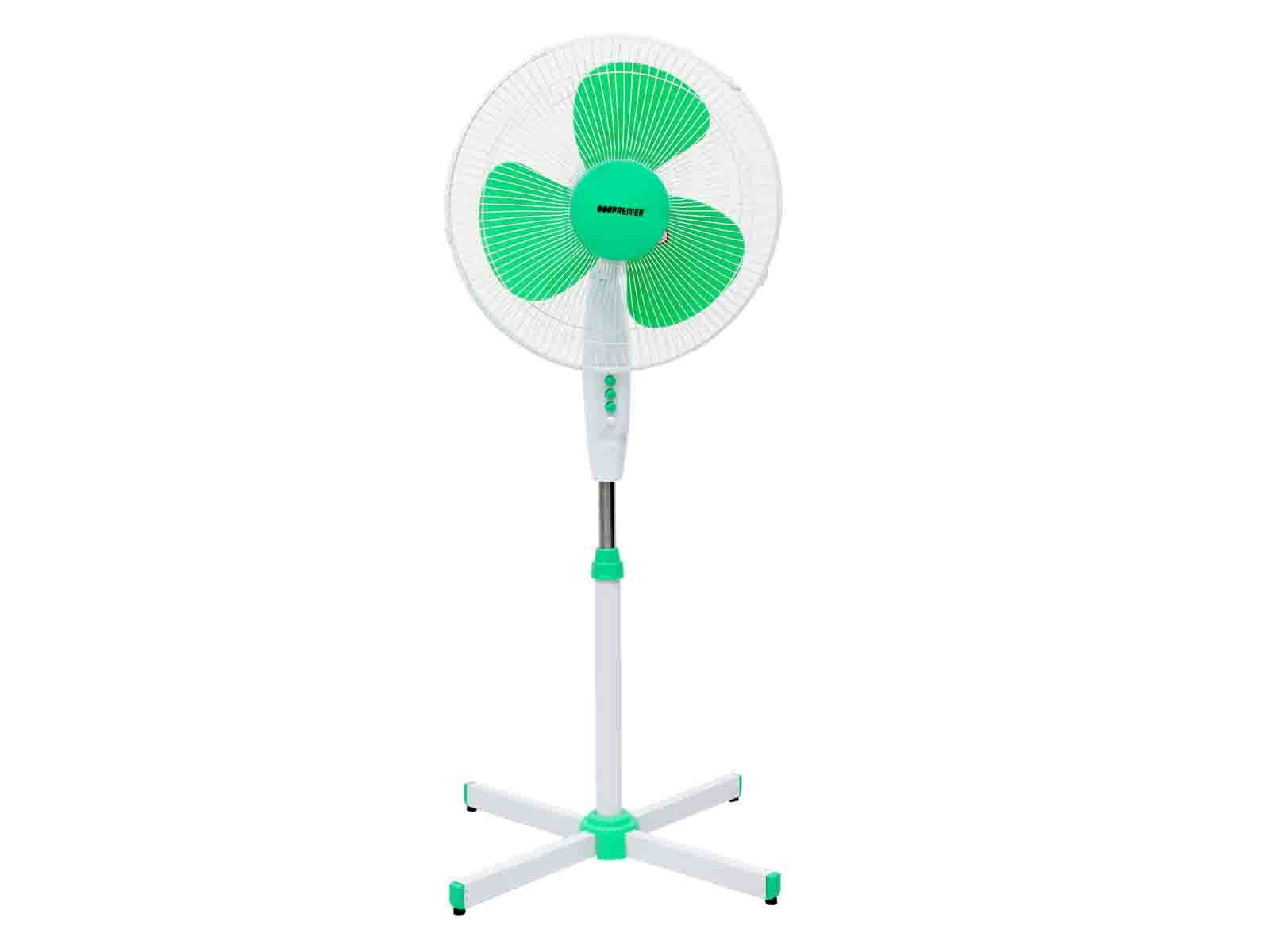

Abanico de pedestal 16" verde

fan

feature: 16 inch stand fan

-           with 3-wings plastic knife blade (size: 14" 36cm), weight: around 70g)

-           with 3 speeds, 4 buttons (0, 1, 2,3)

-           without timer

-           left and right swing 60°~70° , with control buttom. tilt angle below 10 °

[*must use tuning knob to lock the angle adjustment of fan head.]

-           adjustable height setting as per ev sample

-           102 pcs radial line grill [metal spokes] (outer diameter: 43cm)

-           fan blade thickness: 0.9-1.2mm

-           with 102pcs ribs (wire diameter): 1.1~1.2mm (with coating)

-           front net height 69mm, back net height49mm ±5mm

-           support interval 11-12mm

-           front net and back net total weight 405g

-           with clips [free net] around the grill.

-           with cross base (feet length : 600x600mm (with coating), 0.3kg (weight)

-           product height: 125cm (the highest height)

-           lower tube (with painting): length 37.8cm x diameter 38mm, thickness 0.46mm (with coating)

-           extension tube (stainless steel, length 30cm x diameter 25mm, thickness 0.3mm (not less than 0.3mm)

-           must pass 10° tilt test

-           cross feet with food pad

-           motor with fuse protection

material:

material for fan blade: pp material for neck joint: pp material for motor cover: pp

material for front & back panel (control box): pp material for round base : pp

color as below

-           main color in white

-           fan blade in green color

-           front and back grill in white

-           front brand board in green

-           decoration screw in green

-           control box (integrative body) in white

-           on/off button in white

-           other button in green

-           motor cover in white

-           neck joint in green

-           cross feet in white

-           plastic bottom cover in green

data:

power: 35w watts (around)

motor in copper coating aluminum wire, size: 66(l)x66(w)x12 (h)mm with fuse

motor rotation speed (with loading blade): around 1200±50rpm

wind speed according to the ev sample

cable: 2x0.15mm, print 2x0.5mm2, aluminum wire , 160cm outside long. not include plug, (* try to pass pulling test)

*the cable and plug with marking. but no certificate available (client accepted)

voltage: ac110v/60hz with 2 flat pin plug.

voltage: ac110v/60hz
